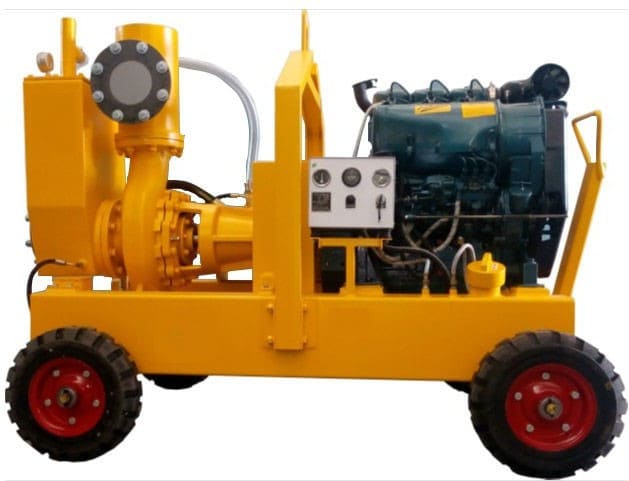

VSP200M - 8" Dewatering Pump
The VSP200M auto priming dewatering pump is the general purpose pump set. It will be well suitable for well point dewatering, Flood water draining, Sewer-by-pass, Mines and Agriculture applications.
Features :
- The VSP vaccum system allows the pump to prime and reprime automatically.
- Oil lubricated vane type vaccum pump, better suction lift up to 8.5m.
- Duel mechanical seal with oil bath cooling system allows you long time dry run.
- Ceramic coated volute casing and stainless steel impeller gives long life for salt water
- CNC machined diesel tank will attain proper pump & engine alignment.
- Anti-Corrosive epoxy zinc primer coating and epoxy anti corrosive ceramic top coat painting.
- Lower maintenance cost.
| Suction lift |
upto 8 mtrs |
| Max Capacity in m3/hr. |
500 |
| Max Head in mtrs. |
32 |
| Suction / Delivery |
8" Miller type coupling |
| Impeller Type |
6 Vanes Closed |
| Maximum solid size in mm |
30 |
| Engine Drive |
Kirloskar HA494 |
| Pump Speed in RPM |
1500 |
| Vacuum Pump |
70 CFM |
| 4- Wheel trolley base |
MS Fabricated, 150 liter |
| Approximate dimension |
240*130*160 CM |
| Approximate weight |
1250 kg |
| Casing, Stuffing Box |
IS 210 FG 260(CI) |
| Impeller, Wear Plate |
ASTM A743 CF8 (SS304) |
| Pump Shaft |
AISI 304 |
| Priming tank |
MS Fabricated |
| 8" NRV |
MS Fabricated |
| Shaft sealing |
Double Mechanical Seal |
| Bearing Bed & Other parts |
IS 210 FG 260 & Standard MOC |
| Battery |
70 ah Dry type |
Performance Curve
