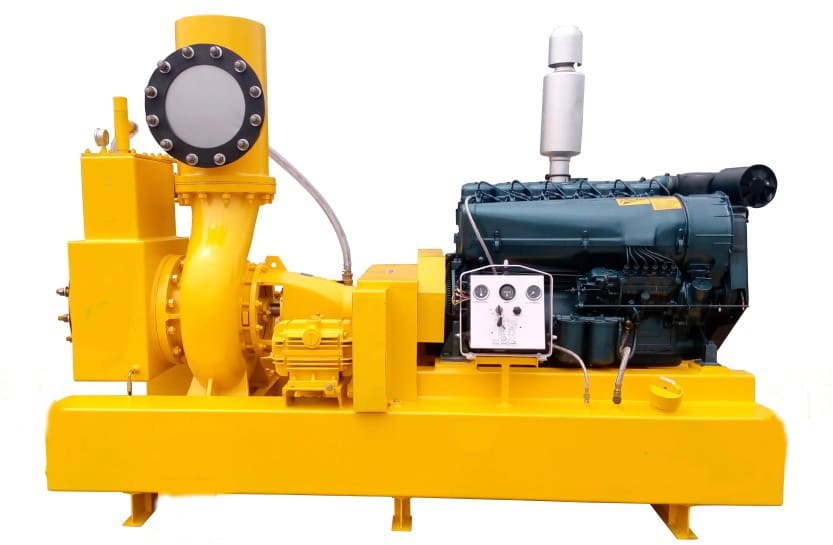

VSP300M - 12" Dewatering Pump
The VSP300M auto priming dewatering pump is the general purpose pump set. It will be well suitable for Flood water draining, Sewer-by-pass, Mines and Agriculture applications.
Features :
- The VSP vaccum system allows the pump to prime and reprime automatically.
- Oil lubricated vane type vaccum pump, better suction lift up to 8m.
- Duel mechanical seal with oil bath cooling system allows you long time dry run.
- Ceramic coated volute casing and stainless steel impeller gives long life for salt water
- CNC machined diesel tank will attain proper pump & engine alignment.
- Anti-Corrosive epoxy zinc primer coating and epoxy anti corrosive ceramic top coat painting.
- Lower maintenance cost.
| Suction lift |
upto 8 mtrs |
| Max Capacity in m3/hr. |
1000 |
| Max Head in mtrs. |
36 |
| Suction / Delivery |
12" Miller type coupling |
| Impeller Type |
6 Vanes Closed |
| Maximum solid size in mm |
50 |
| Engine Drive |
Kirloskar SL6R1080TC |
| Pump Speed in RPM |
1500 |
| Vacuum Pump |
70 CFM |
| Skid Mounting Base |
MS Fabricated, 250 liter |
| Approximate dimension |
300*160*240 CM |
| Approximate weight |
2150 kg |
| Casing, Stuffing Box |
IS 210 FG 260(CI) |
| Impeller, Wear Plate |
ASTM A743 CF8 (SS304) |
| Pump Shaft |
AISI 304 |
| Priming tank |
MS Fabricated |
| 12" NRV |
MS Fabricated |
| Shaft sealing |
Double Mechanical Seal |
| Bearing Bed & Other parts |
IS 210 FG 260 & Standard MOC |
| Battery |
120 ah Dry type |

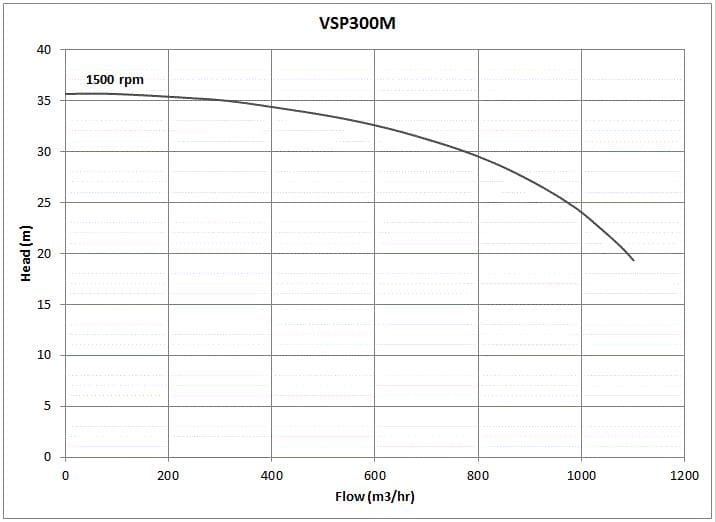

Performance Curve
