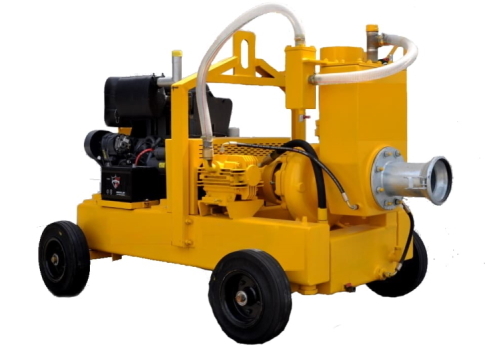

VSP150M - 6" Dewatering Pump
VSP M’ series dewatering pumps are medium-head and high flow design has been developed to operate construction site, flood water draining, mining, and sewer by-pass environments.
Like all of our pumps, is a true self-priming pump and does not require manual priming of the suction line or filling of a priming tank to begin normal operation.
Features :
- The VSP vaccum system allows the pump to prime and reprime automatically.
- Oil lubricated vane type vaccum pump, better suction lift up to 8.5m.
- Duel mechanical seal with oil bath cooling system allows you long time dry run.
- Ceramic coated volute casing and stainless steel impeller gives long life for salt water
- CNC machined diesel tank will attain proper pump & engine alignment.
- Anti-Corrosive epoxy zinc primer coating and epoxy anti corrosive ceramic top coat painting.
- Lower maintenance cost.
| Suction lift |
upto 8 mtrs |
| Max Capacity in m3/hr. |
300 |
| Max Head in mtrs. |
28 |
| Suction / Delivery |
6" Miller type coupling |
| Impeller Type |
6 Vanes Closed |
| Maximum solid size in mm |
25 |
| Engine Drive |
Kirloskar HA394 |
| Pump Speed in RPM |
1500 |
| Vacuum Pump |
70 CFM |
| 4- Wheel trolley base |
MS Fabricated, 130 liter |
| Approximate dimension |
200*130*145 CM |
| Approximate weight |
1050 kg |
| Casing |
IS 210 FG 260(CI) |
| Impeller, Stuffing Box |
ASTM A743 CF8 (SS304) |
| Pump Shaft |
AISI 304 |
| Priming tank |
MS Fabricated |
| 6" NRV |
MS Fabricated |
| Shaft sealing |
Double Mechanical Seal |
| Bearing Bed & Other parts |
IS 210 FG 260 & Standard MOC |
| Battery |
70 ah Dry type |

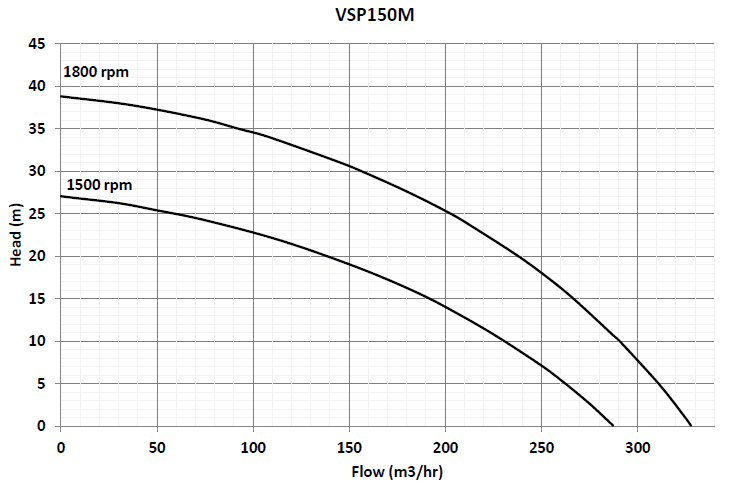

Performance Curve
